W Beam Guardrail

Premium Quality Galvanized Steel Highway W Beam Guardrails

High Quality W-Beam Guardrail Effectively Makes Our Highway Safer
Premium Quality Galvanized Steel Highway W Beam Guardrails
Premium Quality Galvanized Steel Highway W Beam Guardrails
Premium Quality Galvanized Steel Highway W Beam Guardrails
Premium Quality Galvanized Steel Highway W Beam Guardrails
Premium Quality Galvanized Steel Highway W Beam Guardrails

Description

Reviews

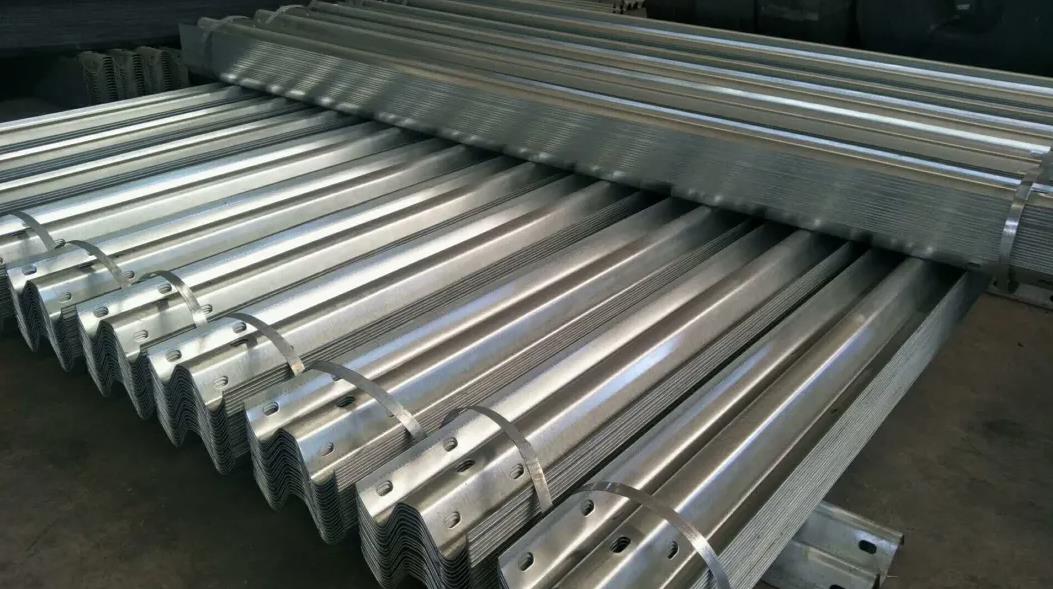

Galvanized  Steel W-beam guardrail is a kind of road crash barrier used for securing highway safety by preventing errant vehicles from sliding out of the roads and impacting the roadside buildings or other objects. So it is commonly fixed on the side of the highways, dock areas, aisles, especially on curves and slopes for protection against run-off-road collisions.

Wuhan Dachu W-beam guardrails are formed in accordance with the latest highway safety barrier technology for making sure its high durability and maximum strength. It is made of high quality steel, which reduces the impact force caused by mobile equipment to the maximum extent. Meanwhile, the zinc coating or PVC coating perfectly combined to the W-beam guardrail keeps the products free of damages of corrosion and rust.

  • Advantages:
  • 1. Easy installation: just attach the beam directly to the post and spacer block.
  • 2. Prevent the mobile equipment from skidding off the road by redirecting it
  • 3. Minimum the damage of errant vehicles
  • 4. High quality material and anti-rust surface for longer service life
  • 5. Corrosion resistant
  • 6. Can be repaired quickly after accident

W-beam guardrails we supply:

To meet the needs our customers, we supply straight and pre-curved W-beam guardrail products. Generally, straight W-beam guardrail just can be applied to the curves with a radius greater than 45m by being lined up for transitioning smoothly. For the radius less than 45m, the pre-curved W-beam guardrail product exploits its advantages to a full.

Straight W-beam guardrails
Pre-Curved W-Beam Guardrails
Details:
Shape: Two waves
Material: Q235 (equivalent to S235JR / DIN EN10025 and Gr.D / ASTM A283M), Q345 (S355JR / ASTM A529M 1994), Q255JR, etc.
Surface: hot dipped galvanized or powder coating
Standard: AASHTO M-180, EN1317, RAL-RG620, JT/T 281-1995, JT/T 281-2007, JT/T 457-2007, SPS98S, EU, USA, AS/NZS, or any other International Standards.
Certificate: GB/T9001-2000, ISO 9001-2000
Specifications
W-beam Length 4128-4320mm
Wave width465-470mm
Wave height 80-85mm
Thickness 2.67-4mm
Zincoating Weight More than 300-1100g/m2
Thickness More than 35-85μm
Notes: Custom length, width, height and thickness are available as your requirements.
